Lockly™ Secure can be fitted for both right swing doors and left swing doors.

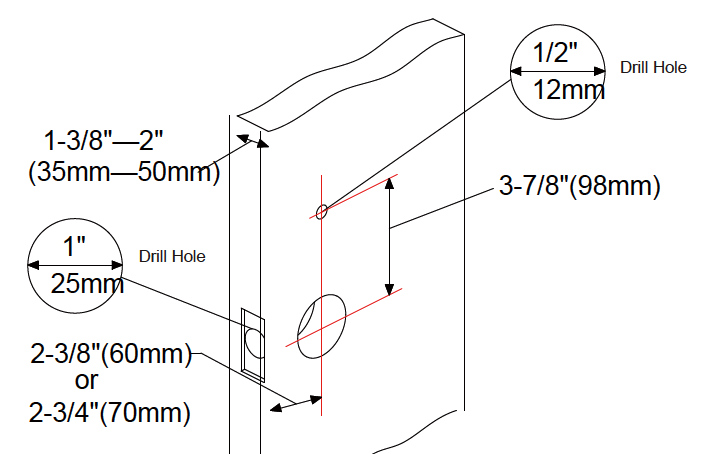

STEP 1: PREPARING YOUR DOOR
Make sure your door is prepped for installation prior to installation. Please use the supplied template for drilling holes required before installation. You will need some tools.
You are not required to drill a hole in your door. We have provided 3M double sided tape for you to help stabilize the lock during installation. Only drill a hole if you wish to have added stability. Please refer to the provided templates for drilling if needed.
STEP 2: ADJUSTING THE BOLT

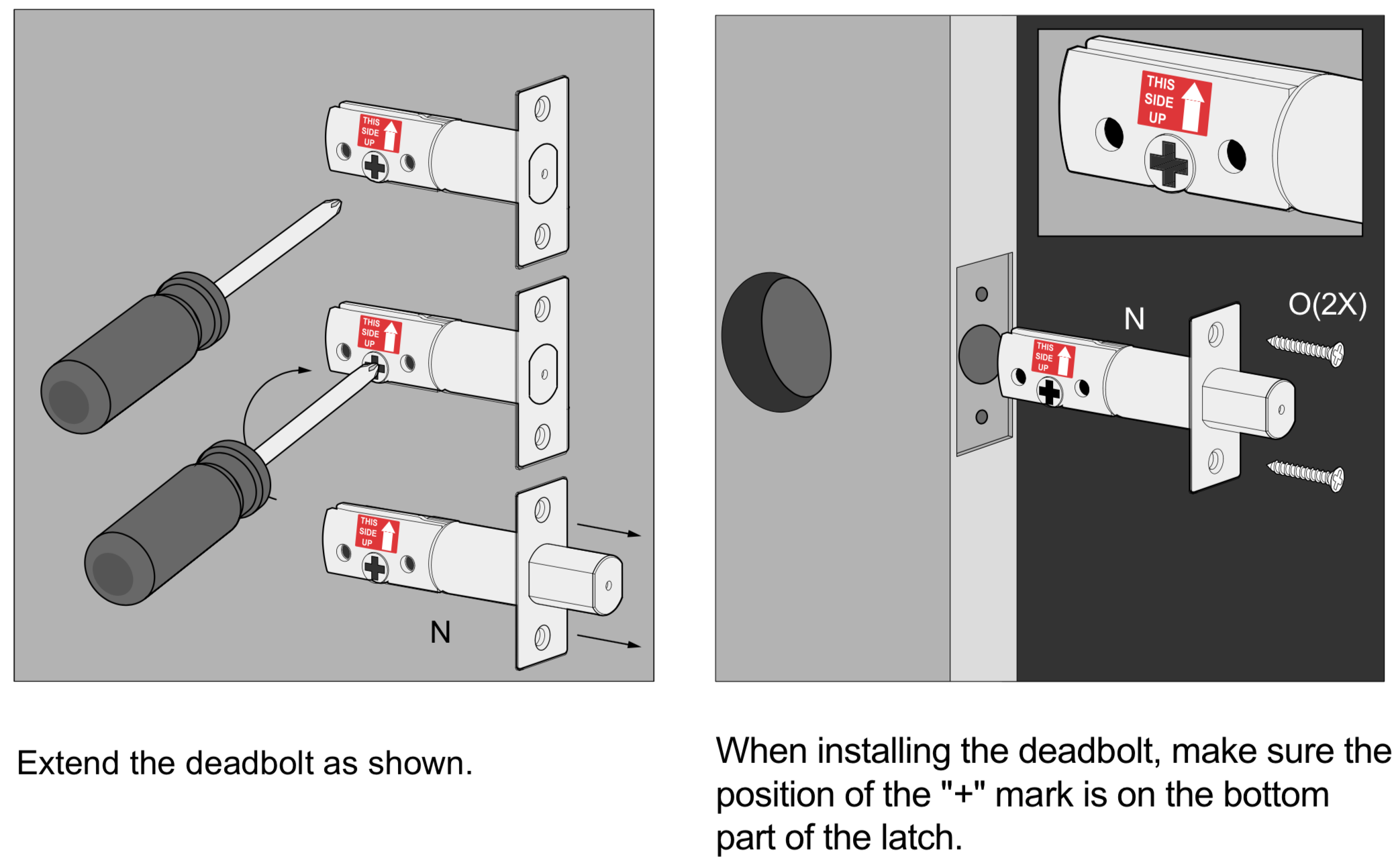

STEP 3: EXTENDING THE BOLT
MAKE SURE THE DEADBOLT IS FULLY EXTENDED (LOCKED) BEFORE INSTALLING PROCEEDING TO THE NEXT STEP

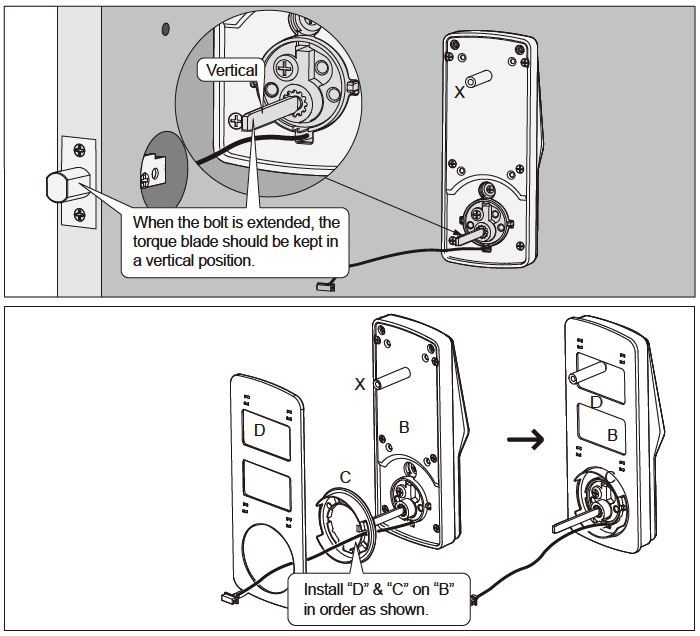

STEP 4: PREPARING THE EXTERIOR ASSEMBLY
The pole (Labeled X) is for stabilizing your lock while mounting the door. It is highly recommended to keep it. However if you don’t want to drill an extra hole in your door, simply loosen the pole by turning it counter-clockwise and slide it up into the open slot to remove it. You may replace it with the 3M EVA sticker provided which serves the same purpose.

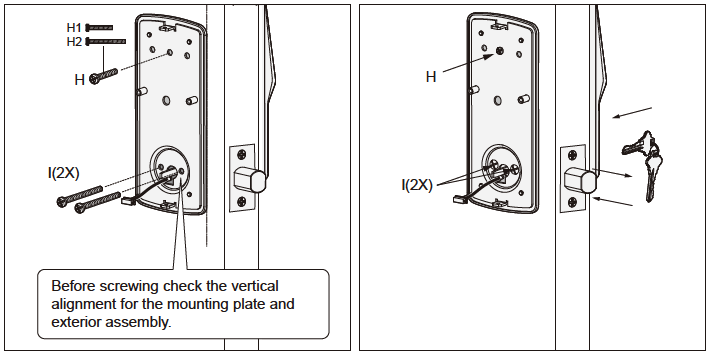

STEP 5: INSTALLING THE EXTERIOR ASSEMBLY
Note: Please use the physical key to rotate the torque blade into the vertical position for installation.

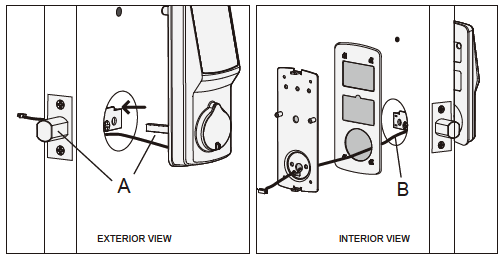

A. When the bolt is extended, the torque blade should be kept in a vertical position.
B. Make sure the cable goes underneath the latch.
Depending on your door thickness, use H1 or H2 screws for the doors. Doors with thickness of 35-43mm, use H1. Doors with thickness of 43-50mm, use H2.
After installation, please use the physical key to test the door latch. If the latch does not retract or extend smoothly, adjust the screws to ensure the latch system works smoothly.

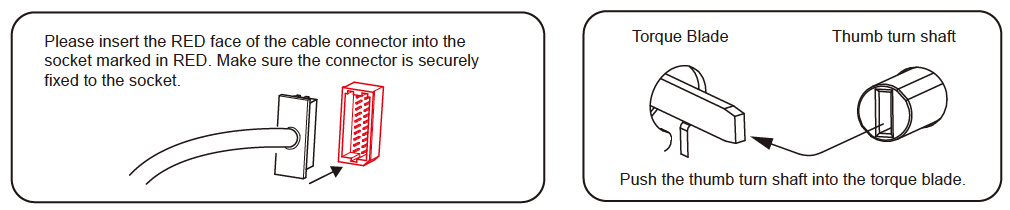

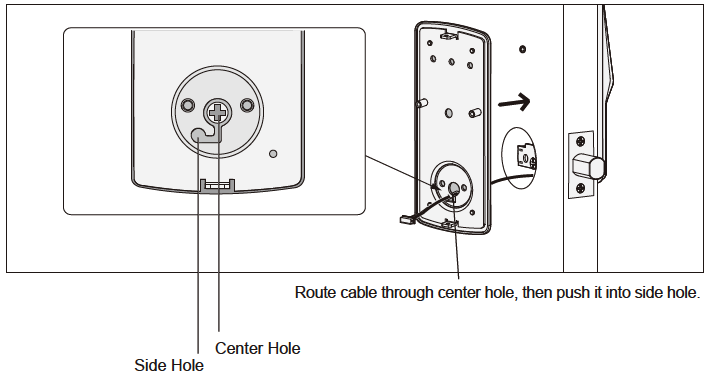

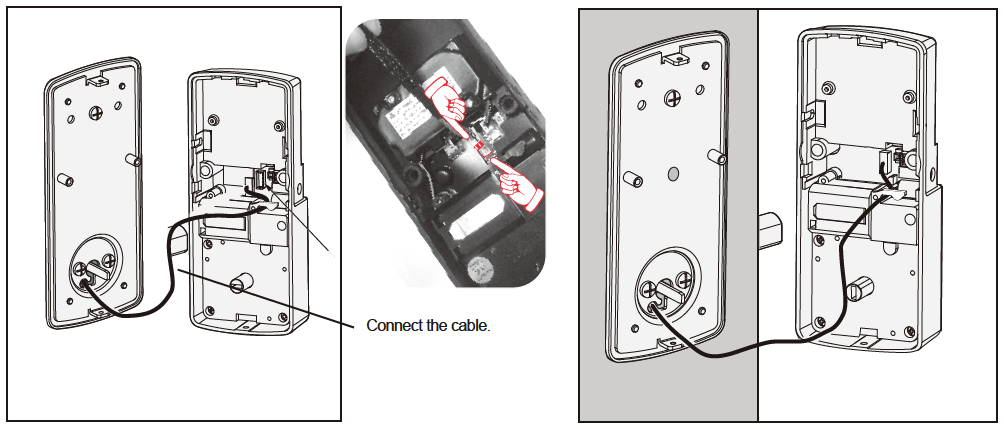

STEP 6: INSTALLING INTERIOR ASSEMBLY

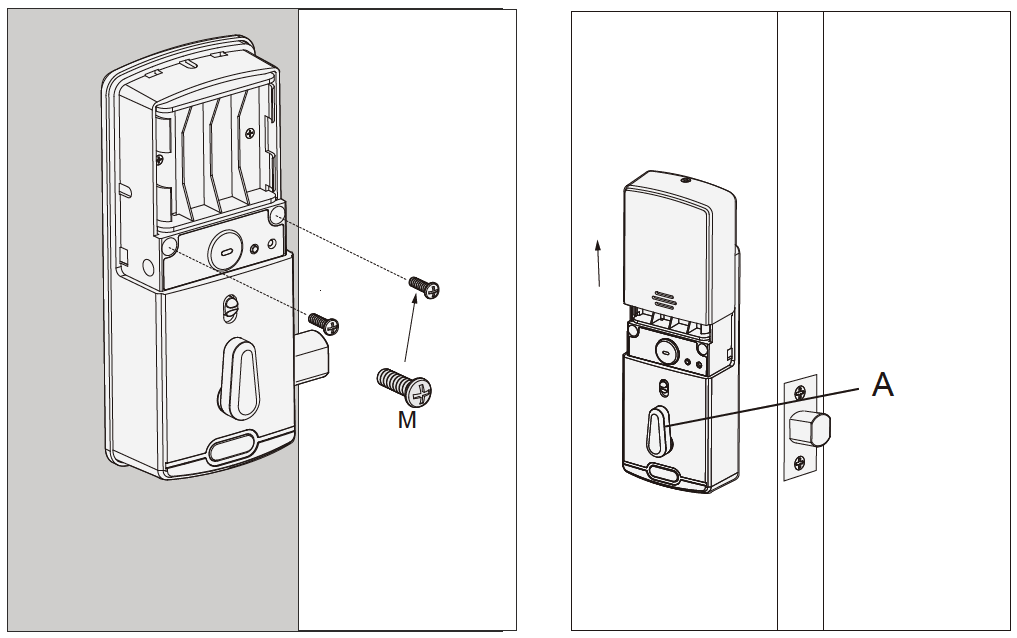

STEP 7: SECURING Lockly™ SECURE
A. Make sure the thumbturn is in a vertical position.
Make sure the cover is removed so you can install batteries, but don’t install batteries yet.

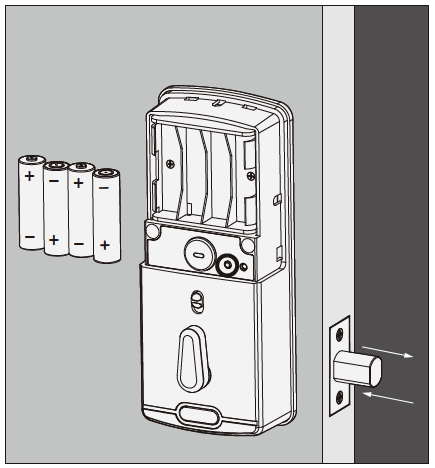

STEP 8: INSTALLING BATTERIES
First install 3 of the 4 batteries. Before installing the last battery, press and hold the PROGRAM button while installing the last battery until you hear a beep from Lockly™.
Lockly™ will then perform a self check and the keypad screen will start to initiate. This self check will automatically determine and set your door lock to a left open or right open door.
The self-check process is very important step to ensure the installation is done properly. Double check if the thumb turn key can be turned smoothly after this self-check process.
If not, go through the whole installation process again making sure all the steps are followed correctly. Do not install battery cover yet.
STEP 9: FINISHING INSTALLATION

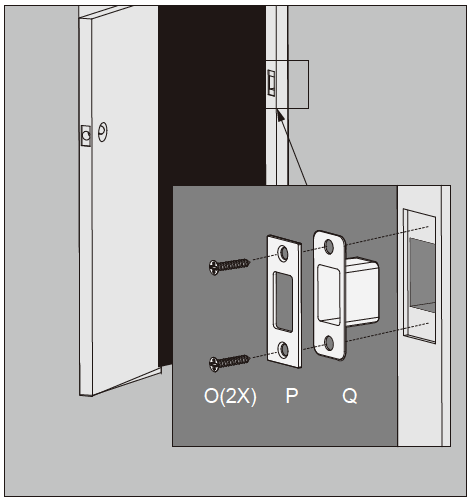

Install the door strike to your door frame and proceed to the last step of installation of your new lock.
Notice: Do not install the battery cover just yet – you’ll need to program Lockly™ before doing so.
You’re all done! You have completed the LocklyTM Secure physical lock installation and now you’re ready to get the lock set up. Download the LocklyTM app from the iOS or Google Play Store to complete your installation.
Scan or visit Lockly.com/app
